    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles

    Ask Lasest Price
    Brand Name : Guanhong
    Supply Ability : 50 Piece/Pieces per Month
    Price : $13,500.00/pieces >=1 pieces
    • Product Details
    • Company Profile

    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles

    Product Overview

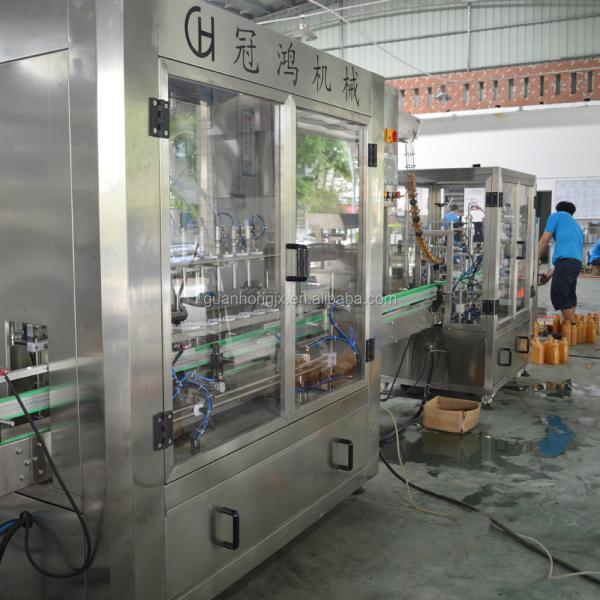

    High speed automatic liquid bottle 4 heads filling capping and labeling machine

    This machine is a new production line for bottle filling, capping and labeling. This machine is made of stainless steel material above 304#, which is very convenient to clean, cost-effective and high production efficiency. It is the choice of filling, capping, labeling machine in daily chemical, and food industries.

    1. Use bottle collecting mechanism to collect finshed bottles;
    2. The bottle goes down automatically, through the PVC conveyor belt turnover mechanism into the chuck mechanism
    3. Single head labeling, visual detecting the bottle labeling, and the bottle lids, with a display screen
    4. Servo torque rotary capping, can add code injection or printing machine, can change other filling or capping mode, can add hydraulic seal, aluminum foil seal cutting

    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    Product Paramenters
    Item
    Data
    Filling head
    4 (can be increased according to customer' demand)
    Capping head
    2(can be increased according to customer' demand)
    Number of labeling
    1 (can be increased according to customer' demand)
    Visual dectecting
    1
    Suitable bottle type
    according to the customer's bottle sample
    Cap sorter form
    electromagnetic vibration (differemt bottle type need to replace the chuck)
    Machine power
    about 3KW
    Program control
    PLC + touch screen
    Air pressure
    0.6-0.8Mpa
    Voltage
    AC220V/380V 50/60HZ
    Production capacity
    1000-2000BPH
    Details Images
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    Tracking type filling heads
    Different from other filling machines,the filling heads of this machine will automatically move with the bottles during
    filling,rather than stopping to fill.Greatly improve efficiency.With anti-dripping function,it will fill liquid accurately
    Tracking type capping machine
    The latest tracking capping machine,no damage to the cap, fast speed, safety and stability, high capping efficiency.

    The machine is controlled by PLC and several servo motors control the movement of the capping pro. In the process of capping, the bottle moves continuously, the capping torque is adjustable, the production speed is fast, the work is stable, the cap will not be damaged in the process of capping.

    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles

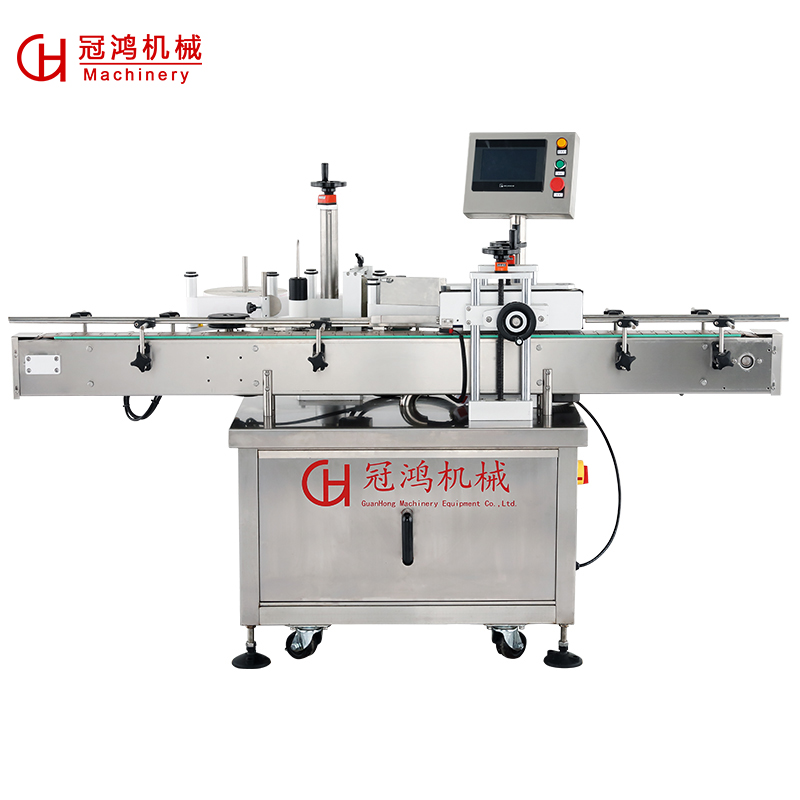

    Automatic round labeling machine
    Automatic vertical labeling machine is for glass bottles, plastic bottles and other cylindrical objects, tapered objects can be customized, but also according to product needs to increase the printer; the machine design is simple, light weight, beautiful. And it can be used independently or connected with other machines into production lines
    Application
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    Recommend Products
    Company Profile
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    Packaging & Delivery
    High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles
    FAQ
    1: Q: Is your company a factory?
    A: Yes, we are a machinery factory that located in Guangzhou, China.
    2: Q: Do you have certificates ?
    A: Yes. CE, GMP quality.
    3: Q: What are the payment methods?
    A: T/T, Cash, Western Union is accepted. For regular order, 50% front payment, 50% balance before shiping.
    4: Q: What's the lead time ?
    A: Usually our delivery time is around 30 to 45 days.
    5: Q: Do you support OEM/ODM?
    A: Yes, we can accept OEM/ODM.
    6: Q: How to pay Express Charge if order samples ?
    A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
    If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before we send the machine, you could pay freight charge directly to our company account.
    7: Q: Deliver goods by air or by ship ?
    A: Both are okay, you would choose your agent or we would arrange for you.
    8: Q: How to visit your factory ?
    A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
